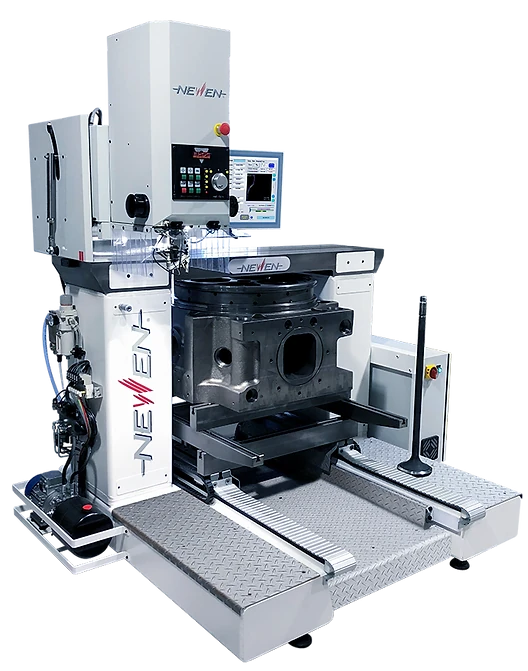

EPOC-VISION™

imashini irambirana CNC

Intego Ntarengwa!
NEWEN® EPOC-ICYEREKEZO ™:
3 + 1 Axis Imashini imwe ya valve imashini isya CNC.

NEWEN FIXED-TURNING® GUKORA MACHINING (PATENTED)
- Urugendo rwa X-Axis1320mm (51.97 ”)
- Urugendo rwiza Y-Axis 80mm (3.15 ”)
- Urugendo rwa Max Z-Axis 327mm (12.87 ”)

CYLINDER UMUTWE WA DIMENSIONS
- Uburebure ntarengwa
(w / o gukuraho umuderevu)		 810mm (31.89 ”)
- Uburebure ntarengwa unlimited
- Ubugari ntarengwa unlimited
INGINGOIbiranga tekinike
INGINGO

EPOC-ICYEREKEZO ™ (Isi yose Ipiganwa • A NEWEN® Yihariye!)
EPOC-VISION Machine Imashini Yisi Yose Yubatswe Imashini zingana na diameter kuva 13.5mm (.
  • imashini stellite valve yicara kumuvuduko mwinshi hamwe na CBN yinjiza geometrie ntagereranywa - ntabwo byemewe nubundi buryo ubwo aribwo bwose.
  • hindura intebe nyayo ya valve uko bishakiye, buri ijana ryimpamyabumenyi.
  • ntagereranywa neza, guhinduka no gukoresha inshuti.
  • ugere KIMWE CYIZA hagati yintebe ya valve na valve yayo, ubwambere, NTA LAPPING.
  • Kwishingira kwibanda kuri sisitemu ya patenti ya NEWEN.
  • kuzenguruka byemewe, muri microni 3 kuri 10Kwiyongera kwa 0mm, ndetse no ku ntebe za valve zingana na 200mm z'umurambararo.
  • umuvuduko utagereranywa wo kurangiza: iminota 1 kugeza kuri 3 yo gukora imashini ya 170mm ya valve.
  • umuvuduko uhoraho wemeza gutungana buri gihe, cyane cyane kunenga intebe nini ya diameter nini - ntibyemewe nubundi buryo ubwo aribwo bwose.

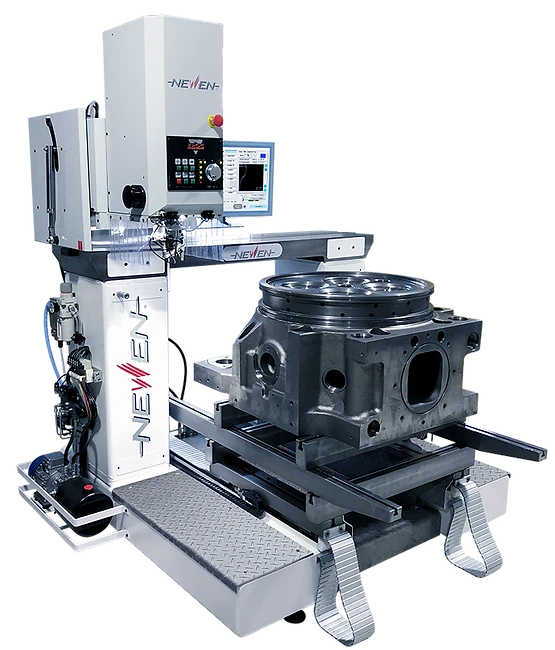

EpocXl2

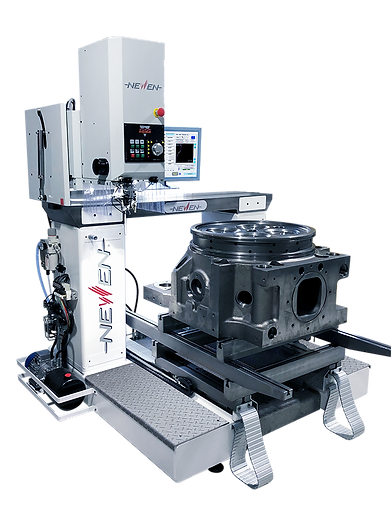

EpocXl1
IBIKORWA BY'IKORANABUHANGA
NEWEN® EPOC-VISION ™: 2-Axis Ingingo imwe CNC Valve Intebe & Imashini iyobora.

NEWEN FIXED-TURNING® GUKORA MACHINING (PATENTED)

X.13Mm 20 (51.97 ”)
Y-Axis, urugendo rwimashini Mm 80 (3.15 ”)
Y'-Axis, imashini igereranya ingendo, igashyirwa kumurongo 340 mm (13.39 ”)
Z-Axis, urugendo rwimashini (ingendo zihagaritse), zashyizwe kumurongo 327mm (12.87 ”)
Z'-Axis, ingendo ya spindle ingendo (kubikorwa byo gutunganya gusa) Mm 95 (3.74 ”)
X-Axis, ingendo zo gutwara, gutwara byikora Mm 11 (0.43 ”)
kwimura radiyo mm 22 z'umurambararo (ex: niba igikoresho gishyizweho na diameter ya mm 20, max machia dia nta repositoning p ufite 42mm)13.5mm - mm 240
(0.53 ”- 9.45”)
UBUSHAKASHATSI
Valve kuyobora reaming ubushobozi 90mm (3.54 ”)
Ibishoboka unlimited
Ibikoresho bigomba gutunganywa Ibikoresho byose, kuva aluminium kugeza ibyuma byoroheje
Kuzunguruka umuvuduko 10-3500 Rpm
Moteri ya moteri 5 HP
Moteri ya Spindle, Kugaburira no gutwara Servo Motors
Igice cya Hydraulic Utubari 200 (2,900psi)
PC 15 '' Ubwoko bwinganda hamwe na ecran ya ecran
Kwihuza RS232 - Ethernet
Centronics USB
Sisitemu ikora Windows 10
Inama ya elegitoronike yahagaritswe hamwe na fi lter ishobora guhinduka
Yubatswe mumashanyarazi mato mato mato (LED)
Ubujyakuzimu bwa elegitoronike gupima LVDT
Kugenzura umubare NEWEN®
Porogaramu NEWEN®
CYLINDER UMUTWE WA DIMENSIONS
Uburebure ntarengwa (w / o gukuraho umuderevu) 810 mm (31.89 ”)
Uburebure ntarengwa unlimited
Ubugari ntarengwa unlimited
IMIKINO YO GUKORA
Uburebure bwa mashini ntarengwa Mm 2300 (90.55 ”)
Ubugari ntarengwa bwimashini Mm 2500 (98.43 ”)
Ubujyakuzimu bwa mashini ntarengwa Mm 2215 (87.21 ”)
Uburemere bwimashini 1750 kg
Imashini uburemere 2050 kg
Umuvuduko 220V Icyiciro kimwe, 50-60 Hz
Umuvuduko w'ikirere Mini 6 bar, 90 Psi
GUKURIKIRA INGINGO
Uburebure Mm 2300
Ubujyakuzimu 2500 mm
Uburebure 1800 mm
