EPOC-VISION™

makinan ma'a'atan i sietton bålba CNC

Obhetibu Taya' i lina'la'-ña !
NEWEN® EPOC-VISIONTM:
3+1 Axis Single Point valve seat milling machine CNC.

NEWEN FIXED-TURNING® MACHINING PROCESS (PATENTED)
- I mas takhilo' na biahe gi i X-Axis1320mm (51.97”)
- I mas takhilo' na Y-Axis na biahe 80mm (3.15”)
- I mas takhilo' na biahe gi i Z-Axis 327mm (12.87”)

DIMENSION I ULO SILINDRO
- I mas takhilo' na tinakhilo'
(sin ma na'suha i pilotu)		 810mm (31.89”)
- I mas takhilo' na lina'la' taya' lina'la'-ña
- I mas takhilo' na lina'la' taya' lina'la'-ña
MANMA'Å'ÑAOI kinalamten tekniku siha
MANMA'Å'ÑAO

EPOC-VISION™ (Worldwide Patented • UN NEWEN® Exclusive!)
EPOC-VISION™ I Mas Unibetsåt na Makina ni' Ma Fa'tinas Siha gi i Makina ni' i diåmetro-ña ginen 13.5mm (.52'') asta mas ki 240mm (9.45''), ginen i mas dikike' na multi-valve na motorcyle cylinder heads asta i mas dangkolo na cylinder heads ni' siña ha' 3 tonelada pat mas.
  • i stellite na bålbula siha gi i makina gi i takhilo' na lina'la' yan i CBN na insert siha para i geometry ni' ti parehu - ti ma na'i ni' hafa na sistema.
  • na'lå'la' i anglo' i asiento gi i balbula gi i minalago'-mu, kada siento na digri.
  • ti siña makompara i presision, i fleksibilidåt yan i minaolek i taotao.
  • na'i PERFEKTO na SEAL gi entre i siyan i balbula yan i balbula-ña, i fine'nina na biåhi, SIN LAPPING.
  • guaha konsentrisidåt ni' ma'a'atan put i sisteman sentro ni' ma'a'atan gi NEWEN.
  • guaha sirkulåridåt, gi halom 3 microns kada 100mm na inkremento, achokka' gi i siyan bålbula siha ni' 200mm i diåmetro-ña.
  • ti siña makompara i lina'la'-ña : 1 asta 3 minutos para u ma'ma'gåsi i 170mm na sietbe-ña.
  • i lina'la' ni' sigi ha' ha na'siguru na perfekto kada biåhi, espesiåtmente gi i dangkolo na sietbe na bålba siha - ti ma na'i ni' hafa na sistema.

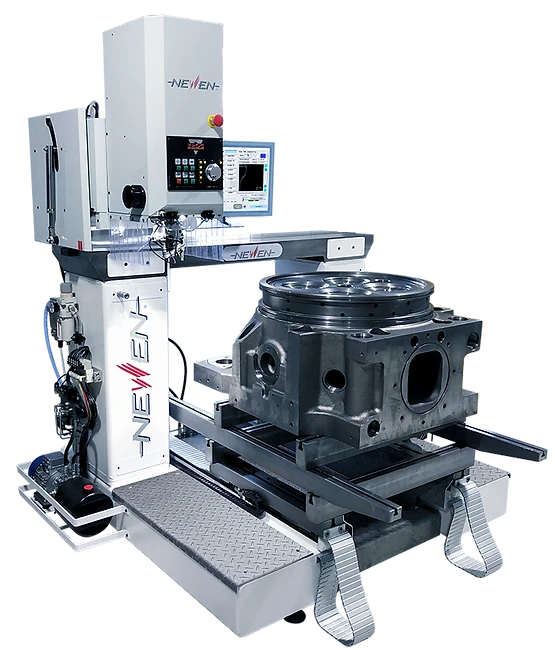

EpocXl2

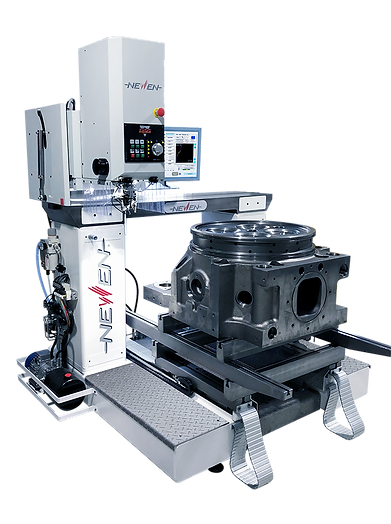

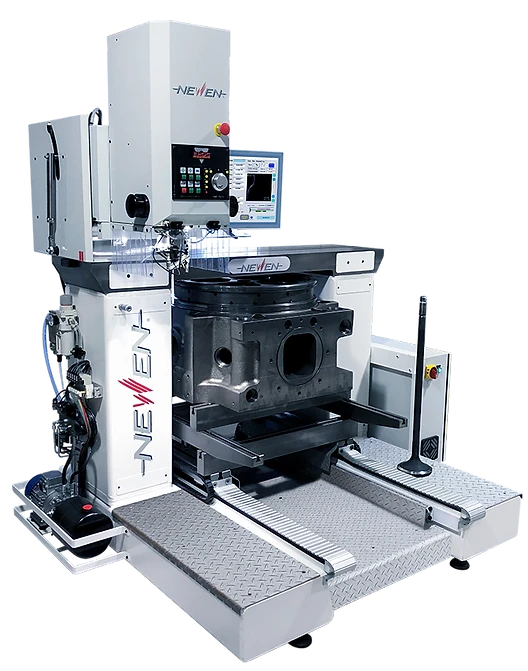

EpocXl1
KARAKTERISTIKA TEKNIKA
NEWEN® EPOC-VISIONTM : 2-Axis Single Point CNC Valve Seat & Guide Machine.

NEWEN FIXED-TURNING® MACHINING PROCESS (PATENTED)

X-Axis, biahen i pachot makina, biahen i pachot gi i lina'la' (distansia ginen guiya asta guiya - X)1320 mm (51.97”)
Y-Axis, biahen i pachot i makina 80 mm (3.15”)
Y'-Axis, i makinan paralelo siha, mamontåyi gi i lineåt na manera siha 340 mm (13.39”)
Z-Axis, biahen i pachot makina (biahen tåtkumu), mamontåña gi i maneran lineåt 327mm (12.87”)
Z'-Axis, i spindle sheath travel (para i makina ha') 95 mm (3.74”)
X-Axis, biahen kareta, kareta ni' automatiku 11 mm (0.43”)
i lina'la' 22 mm gi i lina'la'-ña (pot hemplo: yanggen i åmot 20 mm i lina'la'-ña, i mas takhilo' na lina'la'-ña sin i p holder 42mm)13.5mm - 240 mm
(0.53” - 9.45”)
KAPASIDAT I MAKINA
I kapasidat i bålba guiya i lina'la' 90mm (3.54”)
Posipble na Prufil siha taya' lina'la'-ña
Materiåt para u ma'ma'gåsi Kualkiera na gå'ga', ginen aluminum asta tempered steels
I lina'la' i spindle 10-3500 Rpm
Motor i spindle 5 HP
Motor siha ni' ma'a'agang Spindle, Feed yan Carriage Servo Motors
Unit idråuliku 200 Bars (2,900psi)
PC 15'' Industrial na klasin pantalan
Koneksion siha RS232 – Ethernet
Centronics USB
Sisteman Operasion Windows 10
Kabinet ni' ma'a'atan gi i elektrisidåt yan siña ma'apåsi i filter-ña
I LEDs ni' ma'usa gi i bahu na boltåhi
LVDT na mididan prodokto elektroniku
Numeru na kontodu NEWEN®
Programa NEWEN®
DIMENSION I ULO SILINDRO
I mas takhilo' na tinakhilo' (sin ma na'suha i pilotu) 810 mm (31.89”)
I mas takhilo' na lina'la' taya' lina'la'-ña
I mas takhilo' na lina'la' taya' lina'la'-ña
DIMENSION I MAKINA
I mas takhilo' na tinakhilo' i makina 2300 mm (90.55”)
I mas takhilo' na lina'la' i makina 2500 mm (98.43”)
I mas takhilo' na prodokto gi i makina 2215 mm (87.21”)
I peson i makina 1750 kg
I peson i makina 2050 kg
Voltage 220V Un Fase,50-60 Hz
Presion i Atdao Mini 6 bars, 90 Psi
DIMENSION I EMBAKETE
Lineka 2300 mm
Tinaddung 2500 mm
Inanakko 1800 mm
